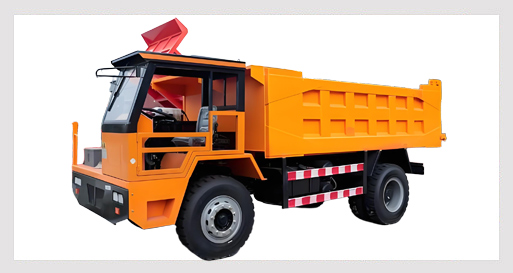

Dump Truck


We specialize in manufacturing two types of mining dump trucks—wheel type and crawler type—with payload capacities ranging from 1 to 45 tons. These trucks are widely used in mines, tunnels, and various construction sites, capable of handling steep inclines, narrow passages, and rugged roads to ensure safe and efficient material transport.

Dump Trucks
Main Features of our Mining Dump Truck:
 1. Premium Brand Engines:Powered by trusted brands such as Yuchai, Yunnei, and Changchai, equipped with brand-new power units and nationwide warranty coverage.
2. High-Quality Axles: Rear axles feature low-speed ratio with high torque, ensuring strong load capacity and stable performance. The axle body is elastic and tough, reinforced for durability.
3. Reinforced Dump Body: Manufactured from high-strength, mining-grade steel and treated with phosphating, the dump body resists peeling, deformation, and wear under heavy loads, meeting top domestic quality standards.
4. Wear-Resistant Tires and Tracks: EWheel models are equipped with Kunlun mining steel-belt tires, designed for wear resistance, high-temperature endurance, and puncture protection. Crawler models feature robust tracks that deliver excellent stability and traction in narrow or uneven terrain.

Payload Capacity: 3.5 Tons Payload Capacity: 5 Tons
Engine: Changchai 490, 63 HP
Transmission: Nanjing 130 with High/Low Speed
Axle: Front Isuzu / Rear Isuzu
Tires: 700-16 Kunlun Mining Steel-Belt (Rear Single)
Overall Dimensions (L*W*H): 4*1.5*1.3 m		 Engine: Changchai 490, 63 HP
Transmission: Dongfeng 145 “Xiaofei” Front-Mounted, High/Low Speed
Axle: Front 1069 / Rear 1069
Tires: 700-16 Kunlun Mining Steel-Belt (Rear Dual)
Overall Dimensions (L*W*H): 4*1.65*1.55 m
Payload Capacity: 7 Tons Payload Capacity: 10 Tons
Engine: Yunnei 4102, 95 HP
Transmission: Dongfeng 145 “Dafei” Front-Mounted, High/Low Speed
Axle: Front 1098 / Rear 1098
Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual)
Overall Dimensions (L*W*H): 4.6*1.8*1.6 m		 Engine: Yunnei 4102, 95 HP
Transmission: Dongfeng 145 “Dafei” Front-Mounted, High/Low Speed
Axle: Front 1098 / Rear 1098
Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual)
Overall Dimensions (L*W*H): 4.6*1.8*1.6 m
Payload Capacity: 12 Tons Payload Capacity: 12 Tons(plus)
Engine: Yuchai 4102 Turbo, 110 HP
Transmission: Wanliyang 545 Rear-Mounted, High/Low Speed
Axle: Front 1098 / Rear 1098
Tires: 750-16 Kunlun Mining Steel-Belt (Rear Dual)
Overall Dimensions (L*W*H): 5*1.8*1.7m		 Engine: Yuchai 4105 Turbo, 123 HP
Transmission: Wanliyang 545 Rear-Mounted, High/Low Speed
Axle: Front 1098 / 1098D with 153 Final Reduction (Rear 1098)
Tires: 825-16 Kunlun Mining Steel-Belt (Rear Dual)
Overall Dimensions (L*W*H): 5.1*2*1.8 m
Payload Capacity: 15 Tons Payload Capacity: 20 Tons(Flat-Nose)
Engine: Yuchai 4108 Intercooled Turbo, 160 HP
Transmission: 10JS90
Axle: Front 153 (10 Bolt) / Rear 153 (10 Bolt)
Tires: 900-20 Kunlun Mining Steel-Belt
Overall Dimensions (L*W*H): 5.6*2.3*2 m		 Engine: Yuchai 260 HP
Transmission: Fast 10JS120
Axle: Steyr Front 7-Ton Heavy-Duty
Tires: 1000R20 Kunlun Mining Steel-Belt
Overall Dimensions (L*W*H): 6.4*2.5*2.46 m
Payload Capacity: 20 Tons(Pointed-Nose) Payload Capacity: 25 Tons(Pointed-Nose)
Engine: Yuchai YC6L290-33
Transmission: 10JS120
Axle: Beifang Benz Planetary Reduction
Tires: 1000R20 Kunlun Mining Steel-Belt
Overall Dimensions (L*W*H): 7.45*2.5*2.73 m		 Engine: Yuchai YC6L340-33, 243 kW
Transmission: Shaanxi Fast 10JSD220
Axle: Hande 20T, Tandem Rear with Air Brake
Tires: 1000R20 Kunlun Mining Steel-Belt
Overall Dimensions (L*W*H): 7.9*2.5*2.72 m
Payload Capacity: 35 Tons(Flat-Nose) Payload Capacity: 35 Tons(Pointed-Nose)
Engine: Yuchai YC6MK375-T300
Transmission: Shaanxi Fast 10JS220
Axle: Hande Tandem Rear 20T
Tires: 12.00R20
Overall Dimensions (L*W*H): 7.748*2.5*2.7 m		 Engine: Yuchai 420 HP, 276 kW @ 2100 rpm
Transmission: Shaanxi Fast 10JSD220
Axle: Hande 20T, Tandem Rear with Air Brake
Tires: 12.00R20 Kunlun Mining Steel-Belt
Overall Dimensions (L*W*H): 8.664*2.5*2.819 m
Payload Capacity: 0.5 Ton Payload Capacity: 0.8 Ton
Cargo Box: 800×700×400 mm
Engine: Kaibao 170F Gasoline, 7.5 HP
Transmission: Homemade, 2 Forward + 1 Reverse
Tracks: 150×60×37 mm
Chassis Width: 70 cm		 Cargo Box: 800×700×400 mm
Engine: Jima 173F, 5 HP
Transmission: Homemade, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Steel-Rubber 150×60×37 mm
Chassis Width: 70 cm
Payload Capacity: 1 Ton Payload Capacity: 2 Tons (Walk-behind)
Dimensions: 2050×800×1130 mm
Cargo Box: 1200×750×450 mm (0.405 m³)
Engine: Xingpu 186F, 9 HP / 6.6 kW
Transmission: Guli 13, 3 Forward + 1 Reverse
Tracks: Steel-Rubber 180×72×38 mm
Chassis Width: 80 cm		 Dimensions: 2480×1170×1260 mm
Cargo Box: 1300×1100×500 mm (0.7 m³)
Engine: Kepu 192F, 12.24 HP / 9 kW
Transmission: Guli 18, 3 Forward + 1 Reverse
Tracks: Steel-Rubber 230×72×46 mm
Chassis Width: 100 cm
Payload Capacity: 2 Tons (Ride-on) Payload Capacity: 3Tons
Dimensions: 2800×1200×1500 mm
Cargo Box: 1600×1200×500 mm (0.96 m³)
Engine: Changchai ZS1105M, 18.14 HP / 13.34 kW
Transmission: Guli 18, 3 Forward + 1 Reverse
Tracks: Steel-Rubber 230×72×56 mm
Chassis Width: 120 cm		 Dimensions: 3180×1450×1500 mm
Cargo Box: 1900×1400×500 mm (1.33 m³)
Engine: Changchai L25M, 21.44 HP / 16 kW
Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Steel-Rubber 230×72×56 mm
Chassis Width: 145 cm
Payload Capacity: 3 Tons Plus Payload Capacity: 4 Tons
Dimensions: 3300×1550×1500 mm
Cargo Box: 2100×1500×500 mm (1.575 m³)
Engine: Changchai L32M, 30.1 HP / 22.12 kW
Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Steel-Rubber 350×90×56 mm
Chassis Width: 155 cm		 Dimensions: 3480×1650×2050 mm
Cargo Box: 2200×1500×600 mm (1.98 m³)
Engine: Weichai Jiaxin 490Y4-2, 57.12 HP / 42 kW
Transmission: Guli 21, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Engineering Rubber 320×90×56 mm
Chassis Width: 151 cm
Payload Capacity: 5 Tons Payload Capacity: 6 Tons
Dimensions: 3500×1700×2050 mm
Cargo Box: 2200×1500×600 mm (1.98 m³)
Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW
Transmission: Guli 23, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Engineering Rubber 320×90×56 mm
Chassis Width: 151 cm		 Dimensions: 3700×1700×2080 mm
Cargo Box: 2400×1500×600 mm (2.16 m³)
Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW
Transmission: Guli 29, 3 Forward + 1 Reverse, High/Low Speed
Tracks: Engineering Rubber 320×90×56 mm
Chassis Width: 151 cm
Payload Capacity: 8 Tons Payload Capacity: 10 Tons
Dimensions: 4030×2060×2300 mm
Cargo Box: 2700×2000×550 mm (2.97 m³)
Engine: Weichai Jiaxin 4105, 92.48 HP / 68 kW
Transmission: Dongfeng 145, 5+1 Gears
Tracks: Engineering Rubber 400×90×70 mm
Chassis Width: 220 cm		 Dimensions: 4300×2200×2350 mm
Cargo Box: 2800×2000×600 mm (3.36 m³)
Engine: Yuchai Turbo 4102, 110 HP / 80 kW
Transmission: Wanliyang 545, 5+1 Gears
Tracks: Engineering Rubber 450×90×70 mm
Chassis Width: 220 cm
Payload Capacity: 12 Tons
Dimensions: 4450×2200×2350 mm
Cargo Box: 3000×2000×700 mm (4.2 m³)
Engine: Yuchai Intercooled Turbo 4108, 160 HP / 118 kW
Transmission: Wanliyang 545, 5+1 Gears
Tracks: Engineering Rubber 450×90×82 mm
Chassis Width: 220 cm
