Ceramic Ball Mill

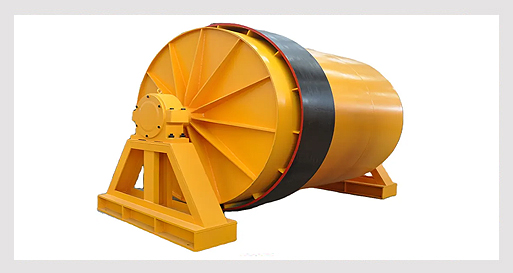

Ceramic ball mill is a small and medium non-continuous grinding machine.It is used for grinding all kinds of mineral stone into fine powder from 60 mesh to 1000 mesh. The ceramic ball mill machine liner is ceramic material and its grinding media is high alumina ceramic balls to avoid the iron contamination. It can be used as wet or dry grinding mill machine according to the specific requirements. The ceramic ball mill is applied to production line with high fineness requirement and no iron pollution, such as ceramic glaze, ultra-fine quartz powder.
Main Features of Ceramic Ball Mill:
1. It is suitable for both wet and dry materials.
2. The machine can use different liner types according to different production requirements.
3. Small footprint: The length of the ceramic ball mill is short, so its footprint is small, which can reduce the cost of land investment.
4. Cheap price: Compared with other ball mills, the price of ceramic ball mill is low, and the cost is recovered quickly.
5. Using ceramic lining and high alumina ceramic grinding medium, to reduce energy consumption and avoid iron pollution.
Main Technical Specifications of Ceramic Ball Mill:
| Model |
Capacity(t/h) |
Cylinder Speed(r/min) |
Motor Power(kw) |
Weight(t) |
| TCQ910x1120 |
0.2 |
36 |
5.5-11 |
3.0 |
| TCQ1200x1400 |
0.5 |
32 |
11-18.5 |
3.8 |
| TCQ1500x1800 |
1 |
28 |
15-22 |
4.5 |
| TCQ1800x2100 |
1.5 |
26 |
18.5-30 |
6.0 |
| TCQ2100x2100 |
2.5 |
22 |
22-37 |
7.4 |
| TCQ2500x2900 |
5 |
16 |
37-55 |
9.3 |
| TCQ2800x3700 |
8 |
14.5 |
55-75 |
12.5 |
| TCQ3000x3700 |
10 |
14 |
75-90 |
18.6 |
